SMC 8648T

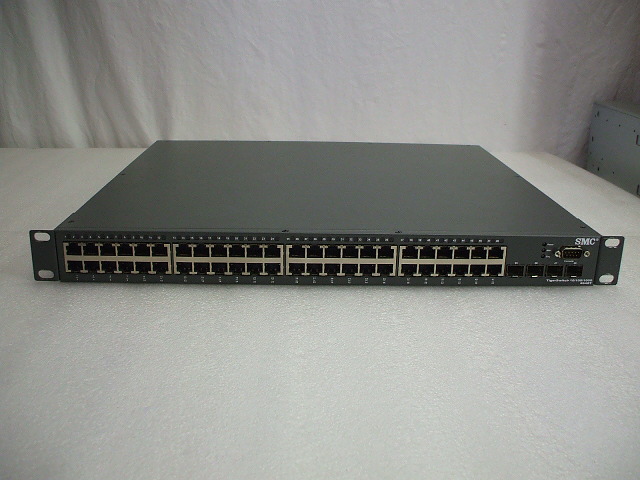

Bought an SMC 8648T 48-port Gigabit managed switch for $135. It runs an IOS-like management interface, but it has some quirks.


Saving Configuration

Good old "wr mem" does not work!

All lies!
Vty-0#wr m
Write to FLASH Programming.
Write to FLASH finish.
Success.
Vty-0#

Instead, the shortest form to save config is:

Actually saves running-config to startup-config
Vty-0#cop r s
Startup configuration file name [startup.cfg]:
Write to FLASH Programming.
Write to FLASH finish.
Success.
Vty-0#

VLAN 1 Special Case

If you want to use VLAN 1 as part of an 802.1Q trunk things get a little tricky. It is the default native VLAN (PVID) for all ports on the switch. You cannot simply disable the native VLAN feature, the switch requires something to be there! This means making a bogus VLAN:

Creating the BLACKHOLE VLAN
Vty-0(config)#vlan database
Vty-0(config-vlan)#vlan 4094 name BLACKHOLE media ethernet state suspend

Notice that this VLAN is created and immediately suspended. Next, to associate the VLAN with the port:

BLACKHOLE the untagged service on the port
Vty-0(config)#interface ethernet 1/1
Vty-0(config-if-e1/1)#switchport mode hybrid
Vty-0(config-if-e1/1)#switchport allowed vlan add 4094 untagged
Vty-0(config-if-e1/1)#switchport native vlan 4094
Vty-0(config-if-e1/1)#switchport allowed vlan remove 1
Vty-0(config-if-e1/1)#switchport allowed vlan add 1 tagged

Notice that VLAN 4094 needs to be added as untagged first before it can be set as the native VLAN. VLAN 1 is removed from untagged and then re-added as tagged. This has an unsettling effect:

Port config after changes
interface ethernet 1/1
 switchport allowed vlan add 1,4094 untagged
 switchport native vlan 4094
 switchport allowed vlan add 1 tagged

where VLAN 1 is both tagged and untagged on the same port at the same time! However, testing shows that despite this contradictory configuration, VLAN egress frames always emerge tagged. This is now the desired effect of being able to use VLAN 1 as part of a trunk.
